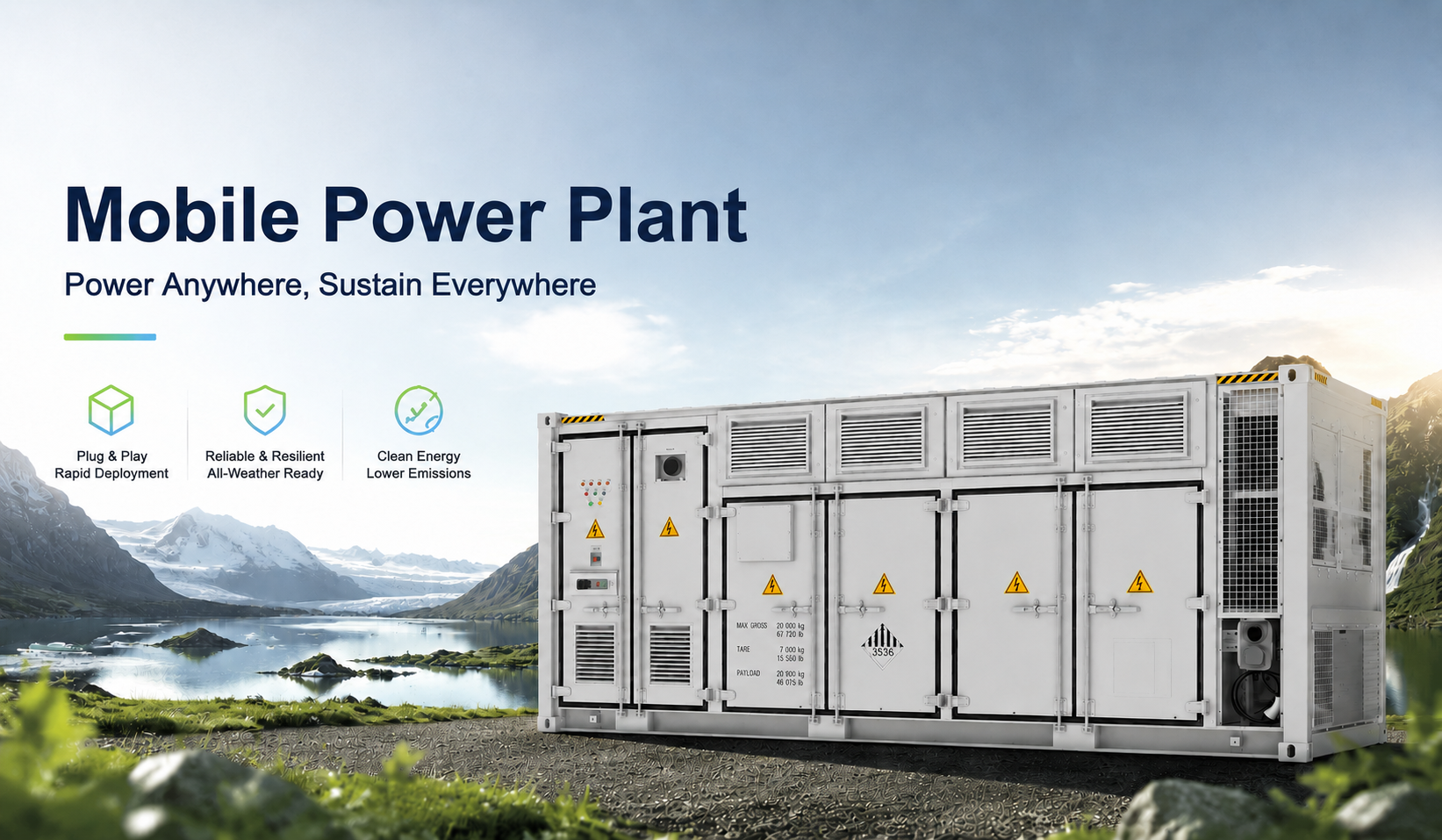

Mobile Power Plant
Powered by CATL LFP batteries and a 1000kW PCS, it enables ultra-fast EV charging with rapid deployment, plug-and-play operation, flexible installation, and remote monitoring & management.
Powered by CATL LFP batteries and a 1000kW PCS, it enables ultra-fast EV charging with rapid deployment, plug-and-play operation, flexible installation, and remote monitoring & management.
Product Model: SNES1000-2036AL-EN
Size: 20feet (6058mm×2438mm×2591mm)
Weight: ≤25t
Cooling Method: Liquid cooling (Battery & Charger)
Protection Level: IP67 (Pack), IP54 (Container)
Temperature & Humidity Range: -20~50°C & 0~95%
Rated Power: 1000kW
Rated Voltage: 400Vac
Voltage Range: 650VDC～950VDC
Rated Frequency: 50/60Hz
Capacity: 2036kWh
DC Voltage Range: 650~950VDC
Rated Grid Frequency: 50/60Hz
Cell: CATL LFP 306Ah
Charge/Discharge Rate: 0.5P
Rated Power: 480kW*1 & 22kW*4
Output Voltage Range: 150~1000Vdc
DC Output Current Range: 400A*2
AC Output Current Range: 32A*4
Max per plug
